Equipment

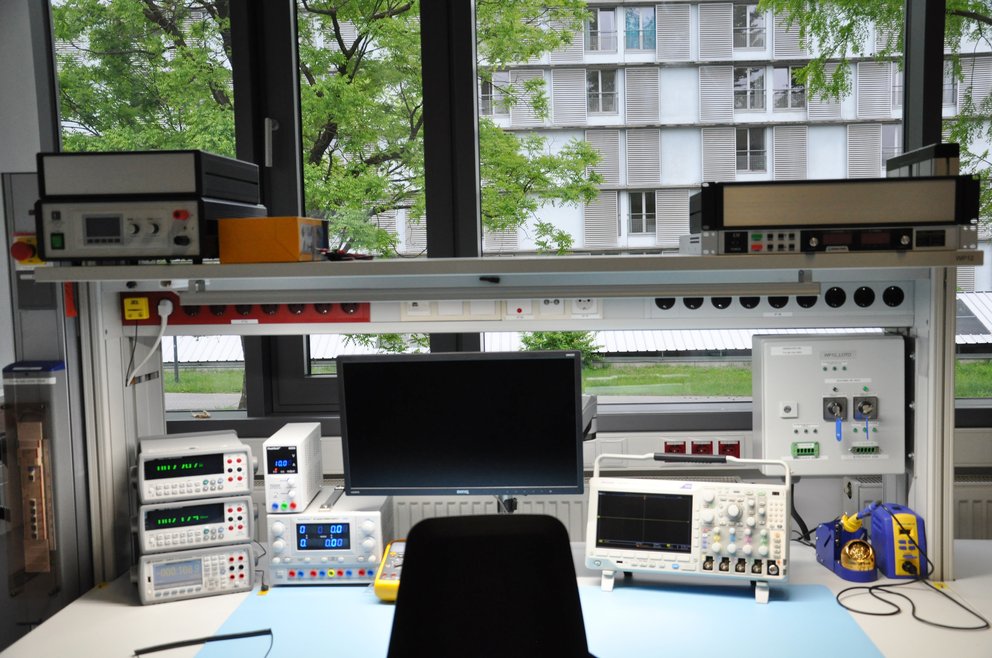

![Arbeitsplatz im Labor von i-pel](/media/filer_public_thumbnails/filer_public/fb/11/fb118d3e-e4d0-4ede-a237-16bbc88fe04f/arbeitsplatz3.jpg__992.0x658.8656716417911_q85_crop_subsampling-2.jpg)
All equipment
Oscilloscopes & Probes
- 4 x MDO3104, Tektronix Mixed Domain Oscilloscope, 1GHz, 4 analog channels, 10M record length, 200MHz spectrum analyser
- 4 x MDO3054, Tektronix Mixed Domain Oscilloscope, 500MHz, 4 analog channels, 10M record length, 200MHz spectrum analyser
- 4 x MDO3024, Tektronix Mixed Domain Oscilloscope, 200MHz, 4 analog channels, 10M record length, 200MHz spectrum analyser
- 4 x TCP0020, Tektronix ac-dc Current Probe, 20 Amp; 50 MHz
- 10 x THDP0200, Tektronix Differential High Voltage Probe; 200 MHz
Impedance Analyser
- 1 x MFIA 5 MHz, Zurich Instruments Impedance Analyser and Precision LCR Meter
- 2 x P 2170, Peak TechLCR-Meter ~ 20.000 Counts ~ 100 Hz - 100 kHz
Arbitrary/Function Generators
- 2 x AFG1062, Tektronix Dual-channel, 60 MHz sine waveforms, 30 MHz square waveforms, 14 bits, 300 MS/s arbitrary waveforms with 1 M points record length
- 12 x P4125, Peak Tech Dual-channel, 25 MHz arbitrary waveforms generator
DC Power Supplies
- 12 x PSI 8080-40 DT, EA Elektro-Automatik PS: 0-80V/0-40A/1kW,
- 12x VB-080P152, MPU Solutions Voltage Booster: 160V/20A, 320V/10A, 640V/5A, 1280V/2.5A,
- 12x CB-080P152, MPU Solutions Current Booster: 40V/80(25)A, 20V/160(50)A, 10V/320(100)A
- 4x SL125-64/380, Magna Power DC Supply: 0-125V/64A/8kW
- 4x VB-125P802, MPU Solutions Voltage Booster: 250V/32A, 500V/16A, 1000V/
- 4x CB-125P802, MPU Solutions Current Booster: 60V/128A, 30V/256A, 15V/512A
AC Power Supplies
- 12x MPU-AC1130RA33, 1x 0-300V, 25-150Hz, 3,3kVA AC source
- 8 x MPU-AC1330RA33, 3x 0-500V, 25-150Hz, 3,3kVA AC source
- 4 x MPU-AC3350RA99, 3x 0-500V, 25-150Hz, 9,9kVA AC source
Grid/Load Emulator
- 1x Emulator, 500kW, 400V, 0-300Hz, Emulator to be installed in Q4/2019
Digital Multimeters
- 24 x Keyisght 34450A, Digital Multimeter, 5 ½ Digit, OLED Display
- 12 x Keyisght 34460A, Digital Multimeter, 6 ½ Digit
- 12 x Keyisght 34461A, Digital Multimeter, 6 ½ Digit, Truevolt DMM
- 24x Fluke 87V, Industrial Multimeter
Soldering Equipment
- 12 x FX 951, HAKKO soldering station
- 1 x FX 801, HAKKO High Power soldering station
- 1 x FM 2016, HAKKO multifunction 3-Port Rework-Station
Low Power Equipment pro Platz
Oscilloscopes & Probes
- 1 x MDO3104, Tektronix Mixed Domain Oscilloscope, 1GHz, 4 analog channels, 10M record length, 200MHz spectrum analyser
- 1 x MDO3054, Tektronix Mixed Domain Oscilloscope, 500MHz, 4 analog channels, 10M record length, 200MHz spectrum analyser
- 1 x TCP0020, Tektronix ac-dc Current Probe, 20 Amp; 50 MHz
- 1 x THDP0200, Tektronix Differential High Voltage Probe; 200 MH
Arbitrary/Function Generators
- 1 x P4125, Peak Tech Dual-channel, 25 MHz arbitrary waveforms generator
DC Power Supplies
- 1 x PSI 8080-40 DT, EA Elektro-Automatik PS: 0-80V/0-40A/1kW,
AC Power Supplies
- 1x MPU-AC1130RA33, 1x 0-300V, 25-150Hz, 3,3kVA AC source
- 1 x MPU-AC1330RA33, 3x 0-500V, 25-150Hz, 3,3kVA AC source
Digital Multimeters
- 2 x Keyisght 34450A, Digital Multimeter, 5 ½ Digit, OLED Display
- 1 x Keyisght 34460A, Digital Multimeter, 6 ½ Digit
- 1 x Keyisght 34461A, Digital Multimeter, 6 ½ Digit, Truevolt DMM
- 1x Fluke 87V, Industrial Multimeter
Soldering Equipment
- 1 x FX 951, HAKKO soldering station
Laboratory room
- 120m2
- Conference area in the green No Power area
- 2 workstations in the Blue Tools area
- 8 workstations in the orange low power area
- 4 workstations in the red high power area
